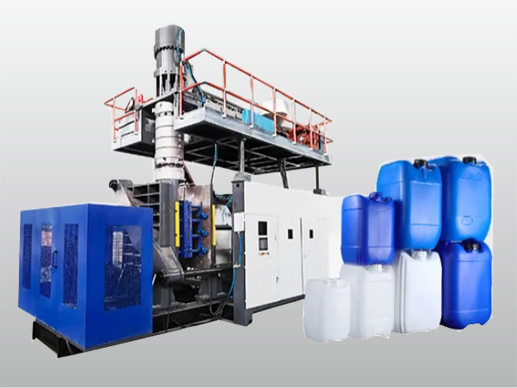

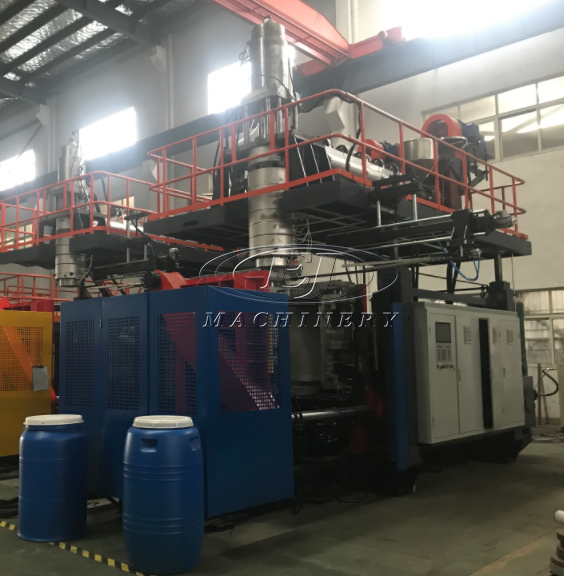

60L HDPE drum plastic accumulator type blow molding machine.

Our 30L, 60L, 100L, and 200L plastic barrel blow molding machines are designed to meet the demand for producing high-quality, large-capacity plastic containers. These machines are widely used in industries such as chemical storage, oil containers, industrial packaging, and agriculture. Leveraging advanced technology and high production efficiency, our blow molding machines ensure each barrel is manufactured with precision and durability. These machines are capable of producing large-capacity containers requiring high strength and durability. Equipped with advanced wall thickness control, these machines ensure the production of high-quality plastic barrels with uniform wall thickness and high strength. Whether used for storage, transportation, or industrial applications, our machines provide the optimal solution for large-scale plastic barrel production.

Machine Configuration

To guarantee top-tier quality and stability, all major components are sourced from globally recognized and trusted brands:
▶Control System: Mitsubishi (Japan, GEFRAN (Italy), WISETECH (Taiwan). Fast response, high accuracy, and proven reliability in industrial applications.
▶ Parison Control (Multiple Options Available): MOOG / GEFRAN / XUNJIE / WISETECH. Flexible configurations to meet diverse processing requirements.
▶ Inverter / Frequency Drive: HAITIAN / INNOVANCE / DELTA
Ensures steady output, strong performance, and long-term stability.
▶ Hydraulic System: SUMITOMO Hydraulic Pump, YUKEN or NORTHMAN Hydraulic Valves. Smooth operation and precise control to enhance consistency and product quality.
▶ Electrical Components, Schneider Contactors and OMRON Relays. Safe, durable, and built for long service life.

Precise Control for Improved Production Efficiency

Our microcomputer control system provides real-time data and allows for precise adjustment of key parameters such as temperature, pressure, and time. This ensures an optimized production process, minimizes waste, and maximizes output efficiency. The automated production line and intelligent control system also reduce operator intervention and improve overall efficiency, making it an ideal choice for high-volume plastic barrel production.

Powerful air pressure system ensures precise barrel shaping. The air pressure system is a key feature of our blow molding machines, especially when producing large plastic containers such as 30L, 60L, 100L, and 200L barrels. Our machines utilize a high-performance air pressure system to ensure uniform air distribution and precise shaping of each barrel. This system ensures uniform barrel wall thickness and consistent shape, which is crucial for storing and transporting liquids and chemicals.
The machine utilizes an energy-saving servo motor, significantly reducing the production cost of plastic barrels.

Suitable for a variety of industries:
Chemical and industrial packaging: For the safe storage and transportation of chemicals, oils, and other hazardous materials.
Food storage: For bulk packaging of food, particularly in industries requiring large-capacity containers.
Agricultural applications: For the storage and transportation of fertilizers, pesticides, and other agricultural liquids.

MACHINE PARAMETER

Accumulator die head blow molding machine
Accumulator type	LWB80N-30L	LWB90N-60L	LWB100N-120L	LWB120N -200L
Parameters
Max die capacity	3.5L	5L	12L	25L
Max die pin diameter	300mm	350mm	450mm	600mm
Screw diameter	80mm	90mm	100mm	120mm
Screw L/D ratio	24	24	24	28
Screw RPM（50HZ)	10-60 r/min	10-60 r/min	10-60 r/min	10-50 r/min
Extrusion capacity per hour(PE)	110kg/h	140kg/h	180kg/h	320kg/h
Number of heaters	4	4	5	6
Platen size	750mm x 800mm	900mm x950mm	1050mm x1260mm	1400mm x1600mm
Clamping stoke	450mm-1000mm	450mm-1100mm	500mm-1300mm	600mm-1800mm
Clamping force	230KN	360KN	440KN	1700KN
Dry cycle time	13S	13S	15S	15S
Cooling water pressure	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa
Cooling water consumption	60L/min	80L/min	100L/min	300L/min
Air pressure	0.8MPa	0.8MPa	0.8MPa	0.8MPa
Compressed air consumption	0.8m³/min	1.0m³/min	1.2m³/min	2.0m³/min
Machine dimension(L x W x H)	5000x2800x3900mm	5500x2950x4200mm	6500x3100x5000mm	6850x3100x3300mm
Machine net weight	12T	13.5T	16T	28T
Power consumption parameter
Inverter motor	30kw	37kw	45kw	90kw
Extruder heating power	16kw	21.4kw	25.1kw	32kw
Power of die heating zone	6kw	7.5kw	9.2kw	15kw
Wall thickness hydraulic motor	4KW	4KW	4KW	7.5KW
Hydraulic motor	13kw	15kw	18.5kw	37kw
Maximum Electrical power rating	69kw	85kw	102kw	182kw
